How to enable geocoding map tables in spotfire (version 6.5)

Locate Folder for Import/Export library item in spotfire:

C:\tibco\tss\6.5.0\tomcat\application-data\library

create geoanalytics folder

Paste "geoanalytics.part0.zip" into this folder. (you can get this from spotfire server installation folder \\TIB_sfire_server_6.5.0_win)

Follow below steps:

To import the geocoding tables into the Library, do the following.

1). Start Spotfire and log in as a Spotfire Admin.

2). Select Tools > Library Administration.

3). Navigate to the Library folder where you want to import the demo files. For instance, you can create a folder called GeoAnalytics.

4). Select Import.

5). Click Browse and select the file geoanalytics.part0.zip.

6). Click OK.

7). Click OK.

Click Close when the dialog states Import Done.

How to create custom color scheme in spotfire

How to create custom color scheme in spotfire

How to change a chart color scheme to not revert back to spotfire's standard categorical color scheme

The solution is to define a custom color scheme and set that as the default categorical/continuous color scheme for the particular columns you will be setting via property control.

The only catch is that this will only work if the columns are all continuous or all categorical. Mixing them will not work.

1. For each column you will be coloring by (all in the drop-down), save your colors as a 'Document Color Scheme
     a. Select column from the property control drop-down (for example 'MyFirstColumn').
     b. Change the "Color By" colors as desired (either via Legend or via visualization > Properties > Colors).

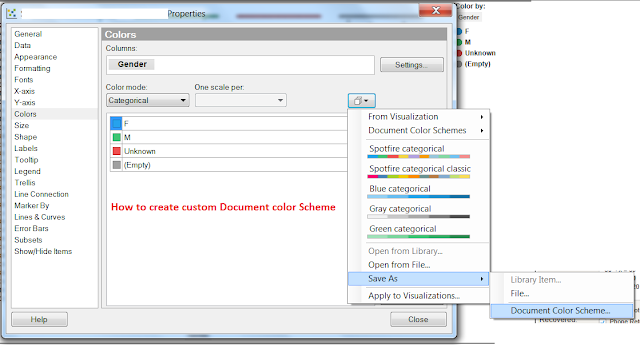

     c. Right click on your visualization > Properties > Colors > Click the 'Color Schemes' button (To the right of the 'One scale per' drop-down) > Save as > Document Color Scheme...
     d. Use a name like 'MyFirstColumn_Color'.
2. Define this color scheme as the default for this column
     a. Go to Edit > Column Properties > Select the Data Column in question (for example 'MyFirstColumn').
     b. Go to the Properties tab > Edit the 'DefaultCategoricalColorScheme' or 'DefaultContinuousColorScheme' Property for that column (depending on whether your column is categorical or continuous).
     c. Add in the value that matches the Document Color Scheme you saved earlier (for example, 'MyFirstColumn_Color').
     d. Click OK (twice) to save all changes.

Single select list filter without none and All in spotfire

1) Create TextArea

2) Right click and "Edit TextArea"

3) Create single select list property as below as named "singleselctList"

4) Go to chart. Right click. click on properties. Go to "Data" Section. Go to Limit Data using expressions and add below.

[category] = DocumentProperty("singleselectList")

where category is a column to be filtered and singleselectList is name of list as in step 3

How to make multi-select list and use as filter in spotfire

1) Create textarea
2) Create Multiple select list as below with name vList

3) Right click in properties for chart. Go to data properties. Go in Limit data Using expression.

([category]=$map("'${vList}'", " OR [category]=")

where category is column to be filtered. vList is name of Multiple-Select List property in step 2

Gauges in Spotfire

1) Add TextArea
2) Edit HTML
3) Add property (calculated column)

For example.
<SpotfireControl id="0e9f0a8148354db49fe6b71ad3545ccd" />

3) Add below code snippet

<style>
.regionSettings{
float:left;
width:200px;
margin:10px;
padding: 5px;
border:2px solid gray;
background:whitesmoke;
}
</style>
<div  id="gauge" style="width: 200px; height: 120px;"></div>
<span id="calcValue">
<SpotfireControl id="0e9f0a8148354db49fe6b71ad3545ccd" />
</span>

4) Add js as below

//define your javascript libraries

resource=[

 "//cdn.jsdelivr.net/raphael/2.1.0/raphael-min.js",

 "//cdn.jsdelivr.net/justgage/1.0.1/justgage.min.js"

]

//add scripts to head

$.getScript(resource[0],function(){

 $.getScript(resource[1],init)

})

//start your widget

init=function(){

  var g = new JustGage({

    id: "gauge",

    value:  parseInt($("#0e9f0a8148354db49fe6b71ad3545ccd").text()),

    min: 0,

    max: 5646,

    title: "Visitors"

  });



  //refresh gauge when calcvalue changes

  $(calcValue).on('DOMSubtreeModified',function(){

    g.refresh($(this).text())

  })

}

Spotfire Shortcut keys

Ctrl+A	Mark filtered rows
Ctrl+C	Copy the marked records to the clipboard as text
Ctrl+D	Create Duplicate Active page
Ctrl+E	Unmark the set of marked records
Ctrl+F	Find the entered text in the entire file
Ctrl+I	Inverts the set of marked records
Ctrl+N	New Page
Ctrl+O	Open an existing file or a file to import
Ctrl+P	Launch the Print Layout Options tool
Ctrl+R	Reset all filters
Ctrl+S	Save the current analysis file
Ctrl+T	Create a new text area
Ctrl+U	Duplicate visualization
Ctrl+V	Paste the clipboard contents into Spotfire
Ctrl+W	Close the current analysis file
Ctrl+Y	Redo
Ctrl+Z	Undo
Ctrl+1	New table
Ctrl+2	New cross table
Ctrl+3	New bar chart
Ctrl+4	New line chart
Ctrl+5	New combination chart
Ctrl+6	New pie chart
Ctrl+7	New scatter plot
Ctrl+8	New 3D scatter plot
Ctrl+9	New map chart
Ctrl+0	New graphical table
Ctrl+Shift+1	New tree map
Ctrl+Shift+2	New heat map
Ctrl+Shift+3	New parallel Coordinate plot
Ctrl+Shift+4	New summary table
Ctrl+Shift+5	New box plot
Ctrl+F4	Close the active visualization
Delete	Delete Marked rows
Alt+F4	Exit Tool
F1	Open online help

Spotfire HTML formatting (Horizontal) for filters in textarea

<table>

<tbody>

<tr>

    <td valign="top"><p align="left">(Write heading 1 here)</p></td>

    <td valign="top"><p align="left">(Write heading 2 here)</p></td>

</tr>

<tr>

    <td> (Add filter control 1 here)</td>

   <td> (Add filter control 2 here)</td>

</tr>

</tbody>

</table>

Few suggestions:

Repeat section in  <td></td> (orange marked) for more filters

Change valign = middle / bottom as required.

Write <table bgcolor=”red”> to give red color to canvas

More advance is there and you can build very nice webpage  with css and jquey.

Spotfire HTML formatting (Vertical) for filters in textarea

<table>

<tbody>

<tr>

<td valign="top"><p align="left">(Write heading 1 here)</p></td>

<td> (Add filter control 1 here)</td>

</tr>
</tbody>

</table>

Few suggestions:

Repeat Yellow marked part for more filters

Change valign = middle / bottom as required.

Write <table bgcolor=”red”> to give red color to canvas

Toggle the filter panel show\hide

if (Document.ActivePageReference.FilterPanel.Visible == False):
   Document.ActivePageReference.FilterPanel.Visible = True
else:
   Document.ActivePageReference.FilterPanel.Visible = False

Toggle the details-on-demand panel on\off

if (Document.ActivePageReference.DetailsOnDemandPanel.Visible == False):
   Document.ActivePageReference.DetailsOnDemandPanel.Visible = True
else:
   Document.ActivePageReference.DetailsOnDemandPanel.Visible = False

Reset Filters in spotfire using IronPython

# Reset Filters in spotfire using IronPython
for scheme in Document.FilteringSchemes:
     scheme.ResetAllFilters()

Reset All Marking in spotfire using ironpython

# Import required libraries
from Spotfire.Dxp.Data import *
from Spotfire.Dxp.Application.Filters import *

# Loop through each data table
for dataTable in Document.Data.Tables:
 for marking in Document.Data.Markings:
  rows = RowSelection(IndexSet(dataTable.RowCount, False))
  marking.SetSelection(rows, dataTable)

Change default value for Listbox in spotifre

Document.Properties['test'] = 'papa'
